Structural Steel Pipe

Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. Gnee steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, Gnee steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.

Classification :

E-mail

PRODUCT DETAILS

Product introduction

Structural Steel Pipe

Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
公称通径 DN	外径OD(mm)	SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		SCH40(6m/5.8m)	SCH40(6m/5.8m)	SCH40(6m/5.8m)
		壁厚WT	壁厚WT	壁厚WT
		(mm)	(mm)	(mm)
1/4''	13.7	2.24	3.02	/
3/8''	17.1	2.31	3.2	/
1/2''	21.3	2.77	3.73	4.78
3/4''	26.7	2.87	3.91	5.56
1''	33.4	3.38	4.55	6.35
1-1/4''	42.2	3.56	4.85	6.35
1-1/2''	48.3	3.68	5.08	7.14
2''	60.3	3.91	5.54	8.74
2-1/2''	73	5.16	7.01	9.53
3''	88.9	5.49	7.62	11.13
3-1/2''	101.6	5.74	8.08	/
4''	114.3	6.02	8.56	13.49
5''	141.3	6.55	9.53	15.88
6''	168.3	7.11	10.97	18.26
8''	219.1	8.18	12.7	23.01
10''	273	9.27	15.09	28.58
12''	323.8	10.31	17.48	33.32
14''	355.6	9.53	11.13	19.05
16''	406.4	9.53	12.7	21.44
18''	457	9.53	14.27	23.83
20''	508	9.53	15.09	26.19
24''	610	9.53	17.48	30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties
ASTM A53	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM A179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM A192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard

Grade

Chemical Composition

Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

GB/T8163

0.07-0.14

0.17-0.37

0.35-0.65

≤0.035

≤0.15

≤0.25

335-457

≥205

≥24

0.17-0.24

0.17-0.37

0.35-0.65

≤0.035

≤0.25

410-550

≥245

≥20

Q345

0.12-0.20

0.20-0.55

1.20-1.60

≤0.045

490-665

≥325

≥21

Structural Steel Pipe Tolerance

Pipe types	Pipe Szie(mm)		Tolerances
Hot rolled	OD	All	±1% (min ±0.50mm)
Hot rolled	WT	All	+15%, -12.5%
Cold drawn	OD	6～10	±0.20mm
		10～30	±0.40mm
		30～50	±0.45mm
		>50	±1%
	WT	≤1	±0.15mm
		>1～3	+15% -10%
		>3	+12.5% -10%

Structural Steel Pipe End

Plain End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut)	Wall Thickness over 0.5 inch, including SCH XXS
Beveled End	Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings	Outside Diameter equal or less than 2''
Thread Protection	Outside Diameter over 4 inch

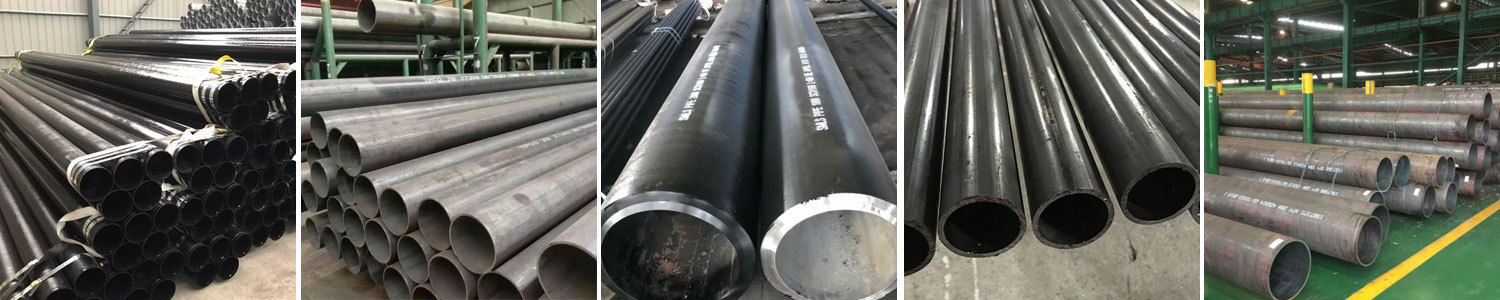

Warehouse Storage

Our company's main products are steel pipe, steel plate, steel coil, steel bar, steel strip, section steel, silicon steel, stainless steel series, carbon steel series, aluminum products and so on. Is a production, trade in one of the enterprise, has many years of domestic and foreign high-quality steel production experience, to provide reliable service for global customers.

Packing and shipping

The company's products are widely used, with annual sales of more than 5 million tons. Products are exported to more than 70 countries and regions. We win the recognition of customers with our honest service and reputation.

Application field

Products are widely used in precision instruments, aviation, ships, automobiles, medical, construction, Bridges, boilers, parts processing and other industries.

COOPERATIVE PARTNER

FAQ

Q1:Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

FAQ

Q2:What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

FAQ

Q3:It's my first time to import steel products, can you help me with it?

A:Sure,we have agent to arrange the shipment, we will do it together with you.

FAQ

Q4:What about product prices information?

A:Prices various according to periodic price changes of raw materials.

FAQ

Q5:What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

FAQ

Q6:What is your terms of payment ?

A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.

FAQ

Q7.Do you provide custom made Products service?

A: Yes,if you have your own design , we can produce according to your specification and drawing.

FAQ

Q8:What are the certifications for your products?

A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
